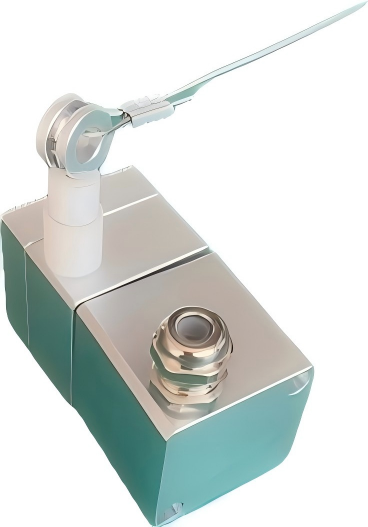

Wire Drawing sensor BYDS-1000
Features
- High precision
- Impact resistance
- Compact design
Specifications
Model | BYDS-1000 |
Range | 1000mm |
Linearity | 0.1%FS |
Sensitivity | 8.333mV/mm |
Resolution | 0.001mm |
Normal operating temperature | -40-85℃ |
Impact resistance | 100g |
Protection level | IP65 |
Bridge supply voltage | 5-24VDC |
Input impedance | 10ΚΩ |
Output impedance | 10ΚΩ |
Insulation resistance | >10ΜΩ @500Vdc |
Cable parameters | 8m |
Housing Material | Aluminum alloy |
weight | 114g |
Sensitive element | 0.6 millimeter coated steel wire rope |
